Products and Services
Drycleaning machine

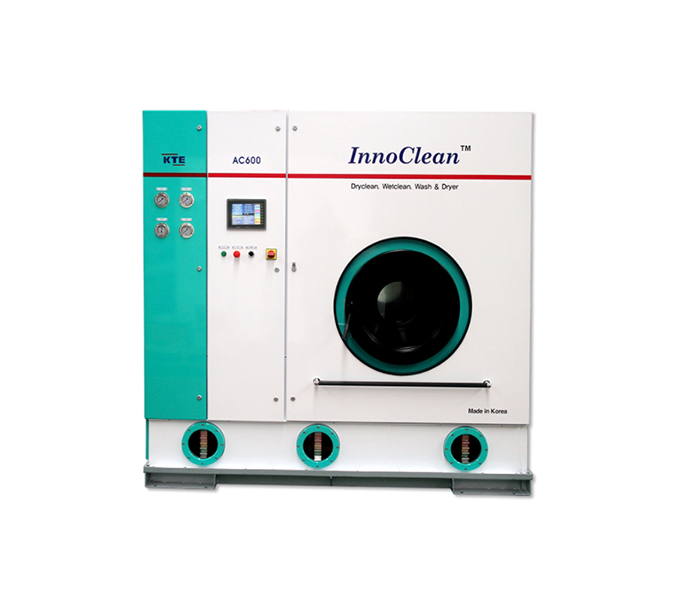

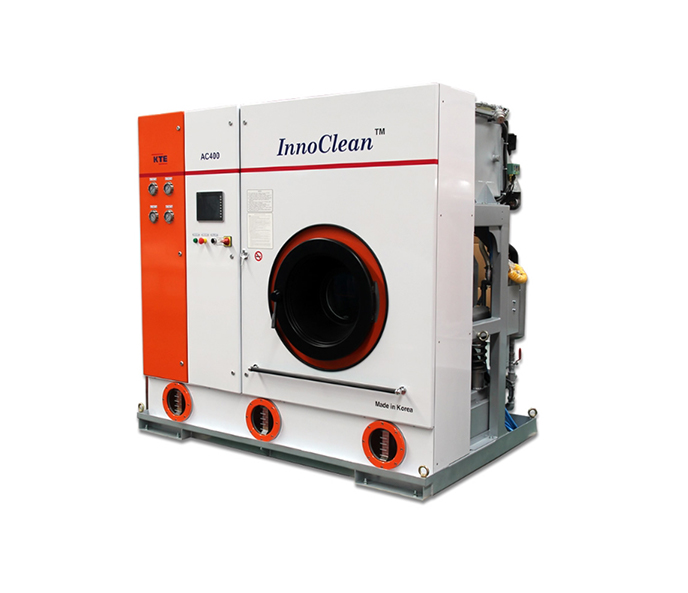

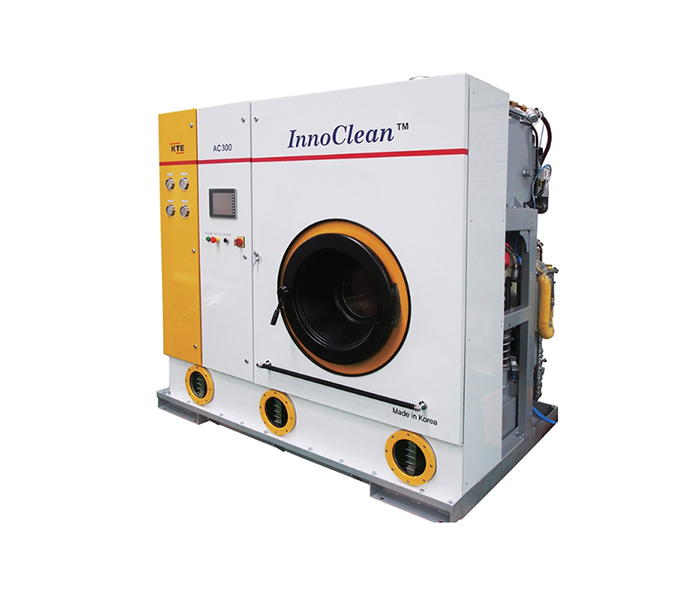

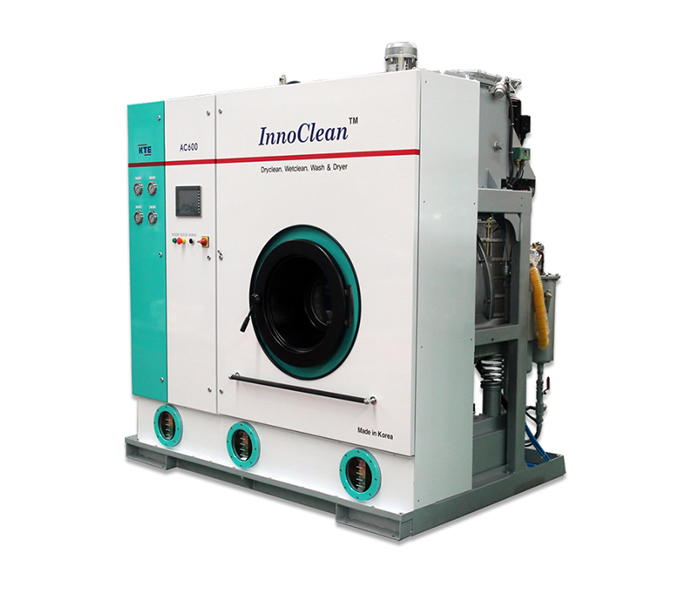

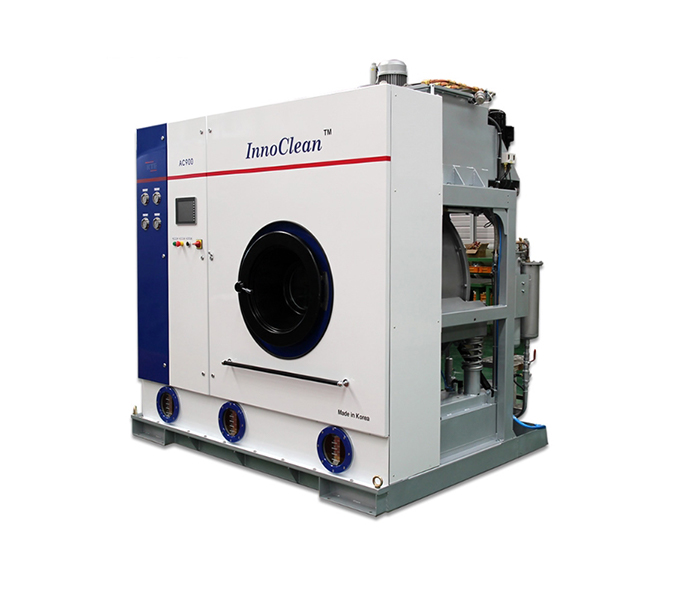

AC SERIES
Dry cleaner
Features
-
All-in-oneFour functions in one machine :
Dry Cleaning, Wet Cleaning, Washing and Drying.Premium series is an innovative washing machine with four functions in one piece : Dry Cleaning, Wet Cleaning, Washing and Drying.
Washing-Drying-Recovery in one device. You can customize the washing program according to fabric, color, pigment, accessories of the laundry.
-
Soft Mount SystemMaximun extraction speed of 900 RPM with minimal vibration
Premium Series is built in a soft-mount manner, delivering a maximum extraction speed of 900 RPM while minimizing equipment vibration, allowing safe washing with less impact on other machines.
view -
State-of-the-art touch control systemAll operation control available on the touch screen
Easy to use the machine with 8.4 inch touch screen. All functions of Premium Series Equipment can be operated and controlled on the Touch Screen.
view -
High Performance Design/ High quality distillation devicePremium series provides fast & safe washing
High performance design : Possible to wash fast and safe, thanks to technologies such as solvent level control, drum rotation speed control, gas concentration control.
High quality distillation device : Possible to wash your laundry in a clean and clear solvent anytime.
view
Specification sheet
| MODEL | Premium Series | ||||
|---|---|---|---|---|---|
| AC 300 | AC 400 | AC 600 | AC 900 | ||
| Size & Weight | |||||
| Exterior dimension (W x D x H) |
mm | 2085 x 1440 x 2180 | 2145 x 1510 x 2216 | 2230 x 1560 x 2500 | 2330 x 1820 x 2550 |
| Weight | kg | 1990 | 2000 | 2330 | 2990 |
| Drum | |||||
| Max. capacity | kg/cycle | 12 | 18 | 27 | 40 |
| Diameter | mm | 800 | 900 | 1000 | 1100 |
| Depth | mm | 440 | 500 | 614 | 735 |
| Volume | ㎥ | 0.22 | 0.32 | 0.48 | 0.7 |
| Loading Door diameter | mm | 500 | |||
| Max. extraction speed | RPM | 900 | 900 | 850 | 750 |
| Tank | |||||
| Tank 1 | ℓ | 68 | 87 | 125 | 168 |
| Tank 2 (Clean Tank) |
ℓ | 95 | 128 | 162 | 205 |
| Tank 3 (Soil Tank) |
ℓ | 84 | 115 | 162 | 196 |
| Max. Solvent filling | ℓ | 270 | 300 | 335 | 470 |
| Spill Tank | ℓ | 317 | 342 | 378 | 572 |
| Distillation | |||||
| Spill capacity | ℓ /Hour | 112~120 | 128~136 | 145~152 | 145~152 |
| Volume | ℓ | 70 | 95 | 124.5 | 197 |
| Consumption | kw | 12 | 12 | 14 | 17 |
| Max. Current (amp) | A-220V/380 | 25/16 | 25/16 | 33/20 | 44/28 |
| Connections | Steam-15A / Water -25A / compressed Air - 8ø / Electricity - 220V or 380V, 3Ph, 60Hz | ||||
